In the automotive manufacturing sector, the exhaust hanger, though an inconspicuous small component, undertakes the critical mission of securing the exhaust system, reducing vibration, and lowering noise. Its quality directly impacts the vehicle's NVH (Noise, Vibration, and Harshness) performance and driving safety. For a long time, the production process for this part has remained at the traditional decentralized processing mode, facing pain points such as difficult precision control, low production efficiency, and significant safety hazards. Now, this situation is being completely transformed by our company's innovative Integrated Head Forming and Wire Bending Machine that combines heading and bending functions.

---

Chapter 1: The Pitfalls of Traditional Processes: Inherent Flaws, Production Bottlenecks, and Safety Hazards of Decentralized Processing

The traditional "bend first, head later" separated processing scheme for exhaust hanger production constrains the improvement of production efficiency on multiple levels. This model not only requires configuring two independent sets of equipment – a bending machine and a punching press – leading to increased equipment procurement costs and wasted factory space, but also demands dedicated operators for each process step, significantly raising labor costs.

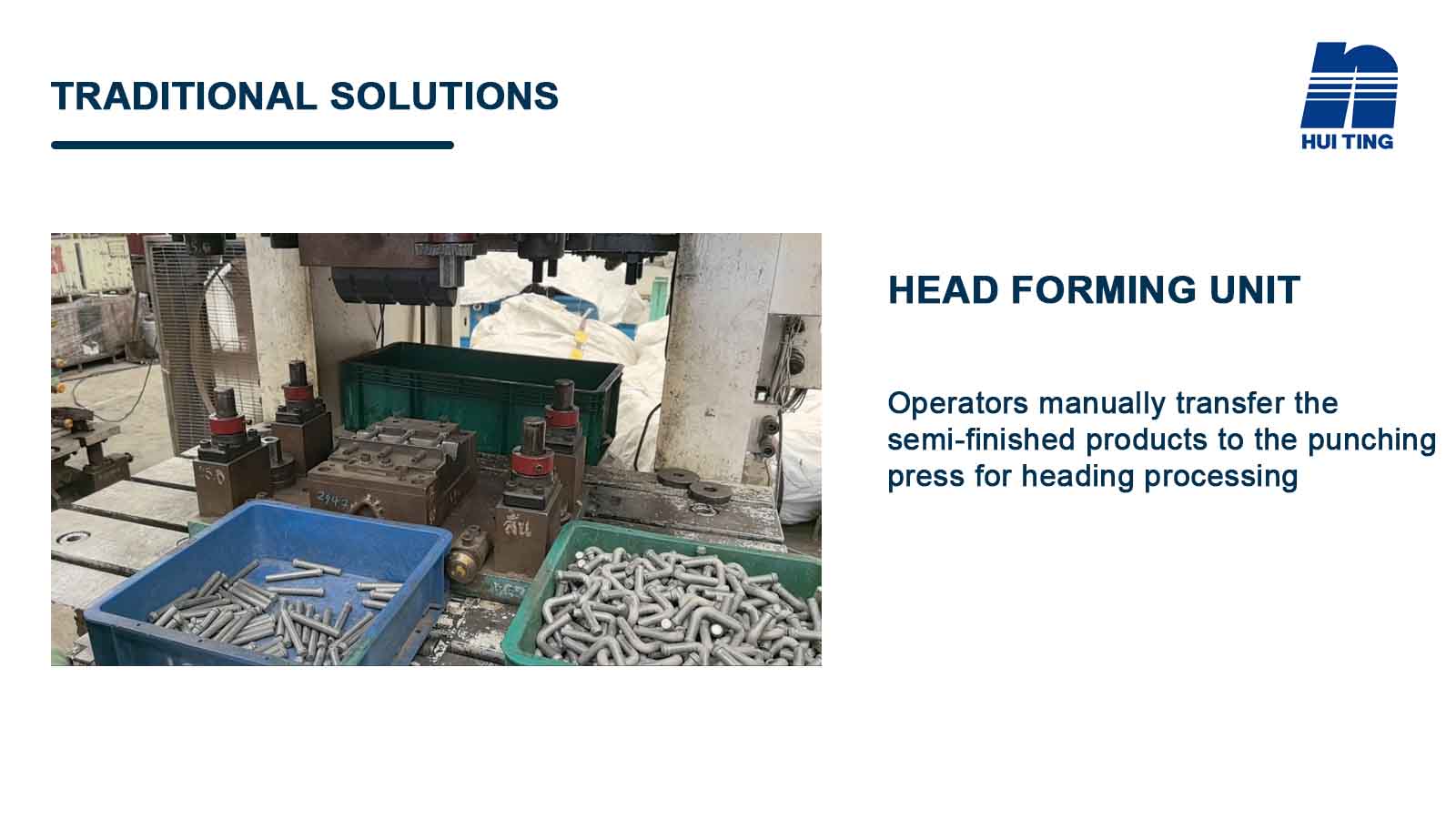

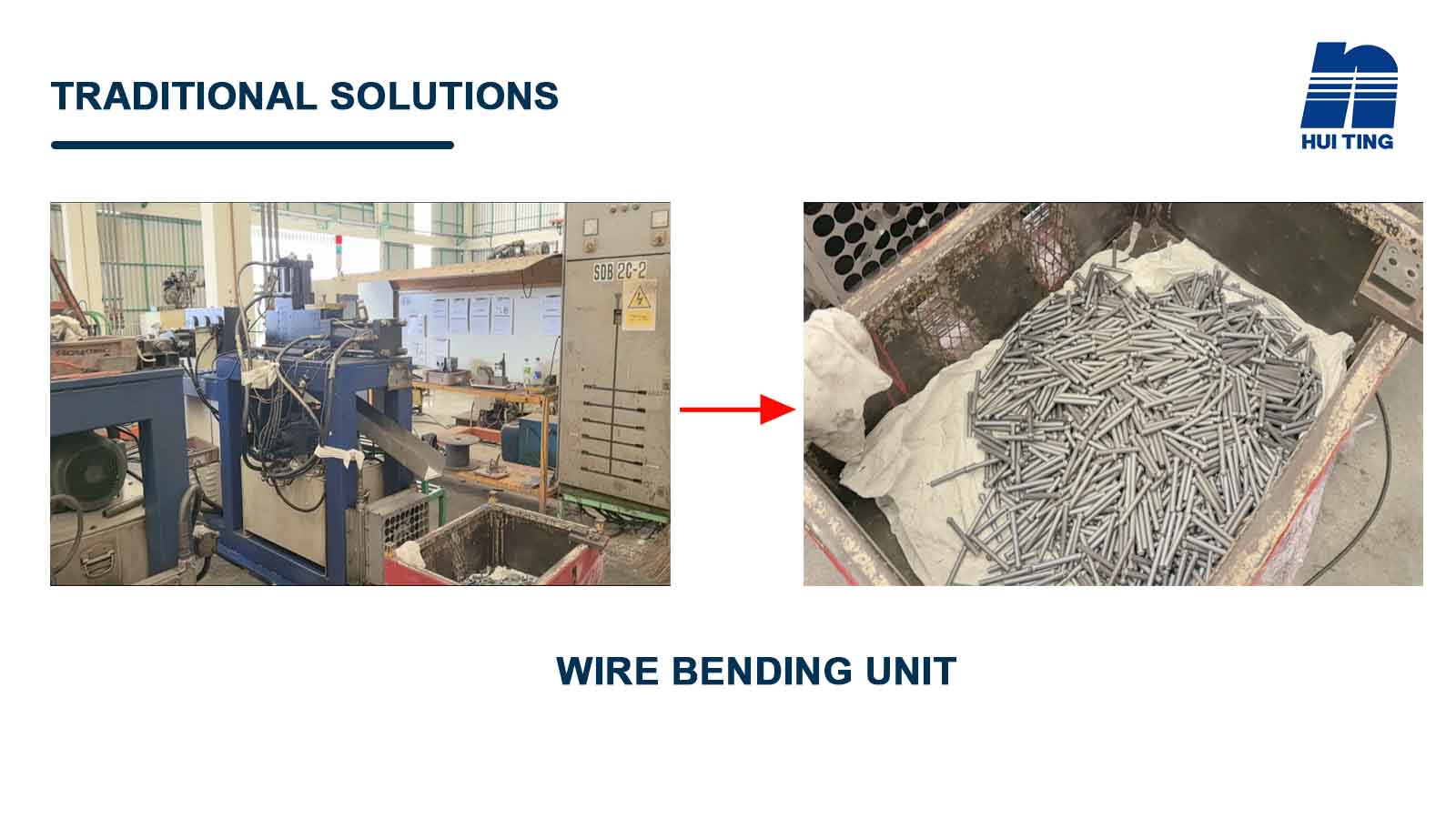

The production process involves multiple discrete steps: the wire is first formed by a bending machine, then operators manually transfer the semi-finished products to the punching press for heading processing, followed finally by surface treatment and inspection. This decentralized process flow exhibits significant efficiency losses. After the bent wire semi-finished products are taken out of the bending machine, they must undergo a "cooling" and "waiting" period. Operators need to manually collect, sort, and then transport them in batches to the punching station. In front of each punch die, precise manual secondary positioning is required, placing each hook accurately into a specific slot of the lower die. Measured data shows that these repetitive precision operations increase the processing time per single product by over 40%.

More seriously, this traditional model brings significant safety hazards. Under the high-speed reciprocating punch, operators need to place their hands into the danger zone hundreds of times per hour. Despite being equipped with safety devices like light curtains and two-hand buttons, fatigue and lapses in attention due to repetitive labor can still lead to serious accidents such as crushing injuries or even severed fingers. This not only causes great harm to employees but also brings high costs for work-related injuries and production interruption losses to enterprises.

The imbalance in cycle time between processes further exacerbates these problems. The bending and punching stations operate independently, lacking effective coordination, creating an obvious "bucket effect": when the bending machine runs at full speed, the punching press waits for material due to inefficient loading/unloading; when the punching press operates at full efficiency, the bending machine cannot supply material fast enough. This cycle time mismatch causes equipment waiting waste, keeping overall production efficiency persistently low. To meet order demands, companies are forced to add equipment or extend working hours, further driving up operating costs and creating a vicious cycle.

This traditional production mode essentially creates a multiple dilemma of resource waste, low efficiency, and safety risks, severely restricting an enterprise's market competitiveness and sustainable development capability.

---

Chapter 2: Technological Breakthrough: The Innovative Breakthrough of Hui Ting Machinery's Integrated Head Forming and Wire Bending Machine

During in-depth R&D, our team at Hui Ting Machinery, through long-term research and demonstration, deeply recognized the fundamental problems existing in domestic cold heading forming equipment. In the current state of Chinese equipment manufacturing, it is indeed difficult to find a performance-stable cold heading forming header machine. Through deep comparative analysis of domestic and foreign models, we found that the main reasons for the shortcomings of domestic equipment lie not only in insufficient part processing accuracy but, more critically, in inherent design flaws in the machine's construction.

We realized that building a truly stable machine requires the perfect combination of design and R&D. If done by inexperienced personnel, or engineers who only understand design but not process R&D, or only understand R&D but not structural design, it is impossible to manufacture a truly stable machine. Although there is a gap between domestic equipment levels and foreign ones, and foreign brands do have advantages in system R&D, many current domestic manufacturers focus too much on marketing promotion, neglecting the essence of the product.

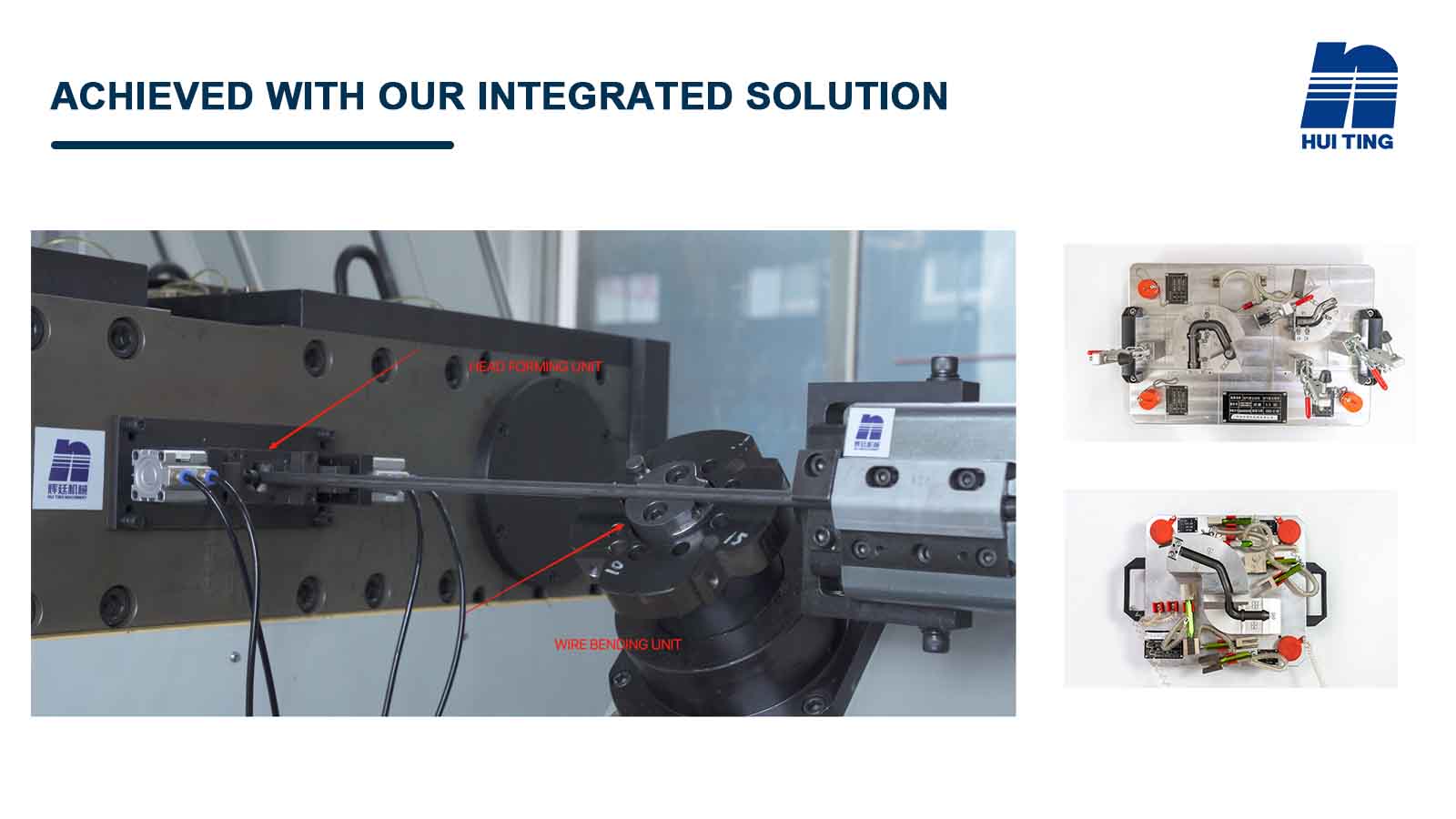

Based on this understanding, we at Hui Ting Machinery always adhere to a down-to-earth and low-key work style, concentrating on researching professional technical fields, and finally successfully developed a multi-functional machine that integrates automatic feeding, precision straightening, stable heading, precise bending, and automatic cutting. The core advantages of this groundbreaking equipment are reflected in:

1. Precision Feeding System: A high-precision feeding mechanism driven by servo motors ensures wire feeding accuracy within ±0.01mm. Ensuring feeding accuracy is a crucial step because it affects the shape and size of the headed head.

2. Straightening Wheel Set: If the wire is not straight, every part produced will be different, simply unable to meet the stringent quality requirements of the automotive industry. The design of this wheel set, including the number of groups and their orientation, are all key points that must be considered during design.

3. Heading Mechanism: The most important aspect is the structural design of this section. Only rationalized design and a guaranteed assembly system can achieve stability in the precision control of this part.

4. Multi-function Processing Platform: Integrates the heading station and the multi-axis wire bending station within the same processing area.

5. Closed-loop Control System: Monitors the status of each station in real-time, ensuring a stable and reliable processing process.

6. Intelligent Vision Inspection System: Uses high-frequency industrial cameras to capture key parameters of the headed form in real-time, perfectly matching with our self-developed system. Each produced part automatically generates complete shape data and quality records, truly achieving intelligent production management and quality traceability.

We firmly believe that only by diligently studying technology and focusing on making good products can we truly improve equipment quality, enabling our machines to compete on the same level as internationally renowned brands like Wafios, BLM, and AIM. This system not only solves the pain point of insufficient stability in domestic equipment but also reaches international advanced levels in terms of intelligence, winning recognition for domestic equipment.

---

Chapter 3: Value Creation: Bringing Comprehensive Benefits to Customers

Hui Ting Machinery's integrated equipment is not simply a superposition of functions; it brings tangible and measurable comprehensive value enhancement to customers through technological revolution, specifically reflected in the following four dimensions:

• Quality Improvement: Enables zero-defect manufacturing.

• Efficiency Revolution: Significantly increases production capacity.

• Cost Advantage: Reduces overall manufacturing costs.

• Safety Enhancement: Creates a worry-free production environment.

Benefit Dimension	Core Metrics	Traditional Process	Our Integrated Solution	Value Created for Customers
3.1 Quality Improvement	Accuracy	±0.1mm	± 0.03mm (3x improvement)	Meets stringent requirements of high-end customers, enables zero-defect manufacturing, significantly reduces quality risks and complaints.
	Product Consistency (CPK)	≈1.0	≥1.67	Ensures highly stable product quality and reliable production processes, greatly enhancing brand reputation and customer trust.
	Surface Quality	Prone to scratches and damage	Damage free processing	Eliminates surface damage caused by secondary handling and clamping, improves product appearance, and avoids additional processing costs.
3.2 Efficiency Revolution	Product Cycle Time	Baseline	40% Improvement	Eliminates inter-process waiting and transfer time, directly increases production capacity and delivery capability, enabling faster response to market demands.
	Changeover Time	Baseline	70% Reduction	Intelligent storage system quickly calls up programs, adapting to flexible production needs for small batches and multiple varieties.
	Labor Requirement	2 persons/machine	1 person/ multiple machines	Significantly reduces dependence on manual labor, alleviates workforce pressure, and achieves substantial long-term labor cost savings.
	Floor Space	Baseline	60% Reduction	Compact integrated design greatly saves valuable production space and optimizes plant layout
3.3 Cost Advantages	Material Utilization Rate	Baseline	Significantly Improved	Precise control reduces waste from defective products and trial materials, directly lowering raw material costs.
	Energy Comsuption Lever	Baseline	30% reduction	Intelligent energy management system optimizes motor operation, reduces standby power consumption, and practices green manufacturing.
	Maintenance Cost	High (multiple machines)	Significantly Reduced	Reduces the total number of devices and spare parts inventory, simplifies maintenance management, and lowers overall maintenance expenses.
3.4 Safety	Manual Intervention	Required in hazardous areas	Completely Eliminated	Achieves fully enclosed automated production in stamping areas, eliminates pinching risks, and ensures operator safety.
	Safety System	Basic Protection	Intelligent Multi-layer Protection	Integrates multiple safety features such as light curtains, emergency stops, and interlocks to build a comprehensive safety protection system.
	Safety Certification	Standard	CE/other certifications	Complies with the highest international safety standards, paving the way for global export and market access.

---

Chapter 4: Application Practice: Success Cases Demonstrate Value

The following are the real, measurable outstanding results achieved by our integrated equipment at customer sites, fully demonstrating the revolutionary changes it brings.

• Case 4.1: Existing Production Line Transformation: Showcases leapfrog improvements in efficiency, quality, and cost for a traditional manufacturer.

Evaluation Dimension	Pre-Renovation Status (Traditional Decentralized Production)	Post-Renovation Results (Using Our Integrated Equipment)	Value Highlight
Production Method	Multiple machines, decentralized processing, manual transfer	Integrated automated production, no intermediate handling	Eliminates production bottlenecks and enables process reengineering
Daily Output	8,000 units	15,000 units	87.5% increase in capacity, significantly enhanced delivery capability
Product Qualification Rate	92%	99.80%	Quality leap, saving hundreds of thousands in scrap costs annually
Staffing Configuration	4 persons per shift	1 persons per shift	75% reduction in labor costs, alleviates workforce challenges
Investment Return	—	ROI period of only 8 months	Extremely fast payback period, generating pure profit continuously after 8 months

• Case 4.2: New Factory Planning Case: Demonstrates how our equipment helps high-end manufacturers build modern, lean, and sustainable smart factories.

Evaluation Dimension	Achievable Level with Traditional Solutions	Results Achieved with Our Integrated Solution	Value Highlight
Production Method	Long production lines, dispersed equipment	Production line length reduced by 60%	Significantly saves factory space, optimizes logistics, and supports lean production
Daily Output	Baseline level	Overall energy consumption lowered by 35%	Green and low-carbon, aligns with ESG principles, significantly reduces operational costs
Product Qualification Rate	May require multiple adjustments	Accuracy fully meets requirements for high-end electric vehicles	Meets the most stringent industry standards right out of the box, helping secure premium orders
System Certification	Requires substantial effort in preparation	Successfully passed IATF 16949 system certification	Strong process capability provides solid foundation for international quality system certification

Conclusion
As the automotive industry moves towards electrification, intelligence, and lightweighting today, the manufacturing process of every component is undergoing profound changes. Hui Ting Machinery's integrated head forming and wire bending machine not only solves the traditional pain points of exhaust hanger manufacturing but also provides new development ideas for the entire wire forming industry.

We sincerely invite all potential customers to visit and inspect our facilities, personally experiencing the changes brought by this revolutionary equipment. Let us work together to promote the global automotive parts manufacturing industry towards high-quality, high-efficiency, and high-value-added development, winning more discourse power and competitiveness in the global industrial chain.

Hui Ting Brand Team

Sep-10th,2025
